Tape Drives and FOCAL "problem"

By -

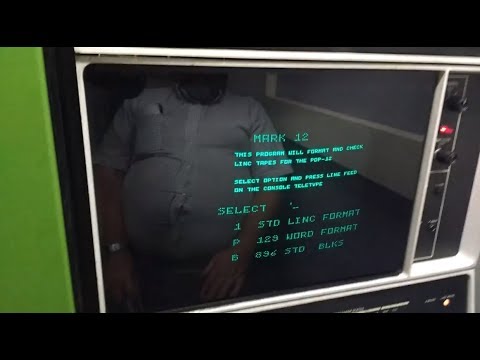

We decided to run some tests with the top tape drive to see how well it works. (Warren brought some almost never used tapes that we used for this). We ran the tape formatting program, Mark12. It failed the first time, but the program maybe didn't send correctly, so we sent it again. It worked! The tape was properly formated for LINCtape. See video below.

We ran some diagnostics for the TU55 and they ran fine. We will start tracking down the problem with the second tape drive.

Warren ran FOCAL in the PDP-8 simulator on simh. It turns out that when he ran the same code in the simulator it also ran an extra time, 101 or 1001. It turns out that the code wasn't exactly right. After it runs for the set number of times, it runs one extra time as it goes back through the code. Adding another line that tells it to stop fixed this. So, FOCAL does work!

Comments

Post a Comment

Popular posts from this blog

Power Supply: The Mystery Continues

By -
I continued testing the power supply. It would work most of the time it was powered on and give the correct voltages, but then sometimes when it was powered it the +5V circuit breaker would trip. I managed to capture this on the oscilloscope The peak voltage was 5.16V and then the breaker trips and it goes down to around 1V.  Time to keep investigating the G824 module to see if there is something wrong with it. (Michael from RICM has been very helpful with troubleshooting so far).  I borrowed a nice mixed signal scope from the EE shop. It blows my HP 54200A out of the water. The +5V regulator is supplied by the +8V line. So Michael suggested looking at both of the lines as they power on to see what they look like. Not Tripped Tripped Above are the results of this. I measured the peak voltages for both lines when they tripped and didn't trip. The +5V line averaged around 6.6V when it didn't trip and averaged around 12V when it did trip. The
Read more

Serial and Other Diagnostics

By -
Warren came up from South Dakota to help us get the serial ports working and do some more diagnostics. Sunday night he made a cable to connect the serial card to the serial port on our computer tower. We are using Warrens modified copy of MTTTY (Multi Threaded TTY) as our TTY emulator. It is an old Windows program so we are running it in Wine and it has been working pretty well so far.  After On Monday... We toggled in two simple programs. One was a send/receive program and the other was a send. The send would take the data input on the right switches and display the character or number associated with that number in MTTTY on the PC. The code for that is as follows: 0200 / 7604  LAS 0201 / 6046  TLS 0202 / 6041  TSF 0203 / 5202  JMP 0204 / 5200  JMP  The LAS instruction loads the AC with the switch register. TLS Sends the AC to the serial port. TSF will skip the next line if the flag is set. JMP will jump to 202 and then the next JMP will jump to 200. This program w
Read more

Setting up our new Raspberry Pi0-based Flip Chip Tester (FCT)

By -
  Today's task: get our Flip Chip Tester (FCT) up and running. For those who don't know, Flip Chips (in DEC parlance) are small circuit boards with a handle opposite an edge connector, about the size of a 3x5 card, that have a small number of discrete components on it. Each Flip Chip provides a specific set of components to a machine. The one pictured here is an M617, which provides six four-input NAND gates (two per IC). The Flip Chip would be inserted into a slot, and a wire-wrap backplane would connect it to power, ground, and upstream and downstream components. One of my favorite things to explain to students is how the PDP-12's CPU can quite literally be repaired. When FCs go bad, it's usually because some IC on the FC has failed. Of course, you can just swap out the whole FC (if you have a spare). However, they can also be easily repaired if you know what to replace and you have equivalent IC packages. Enter the Flip Chip Tester. Before he died, Warren Stearns pro
